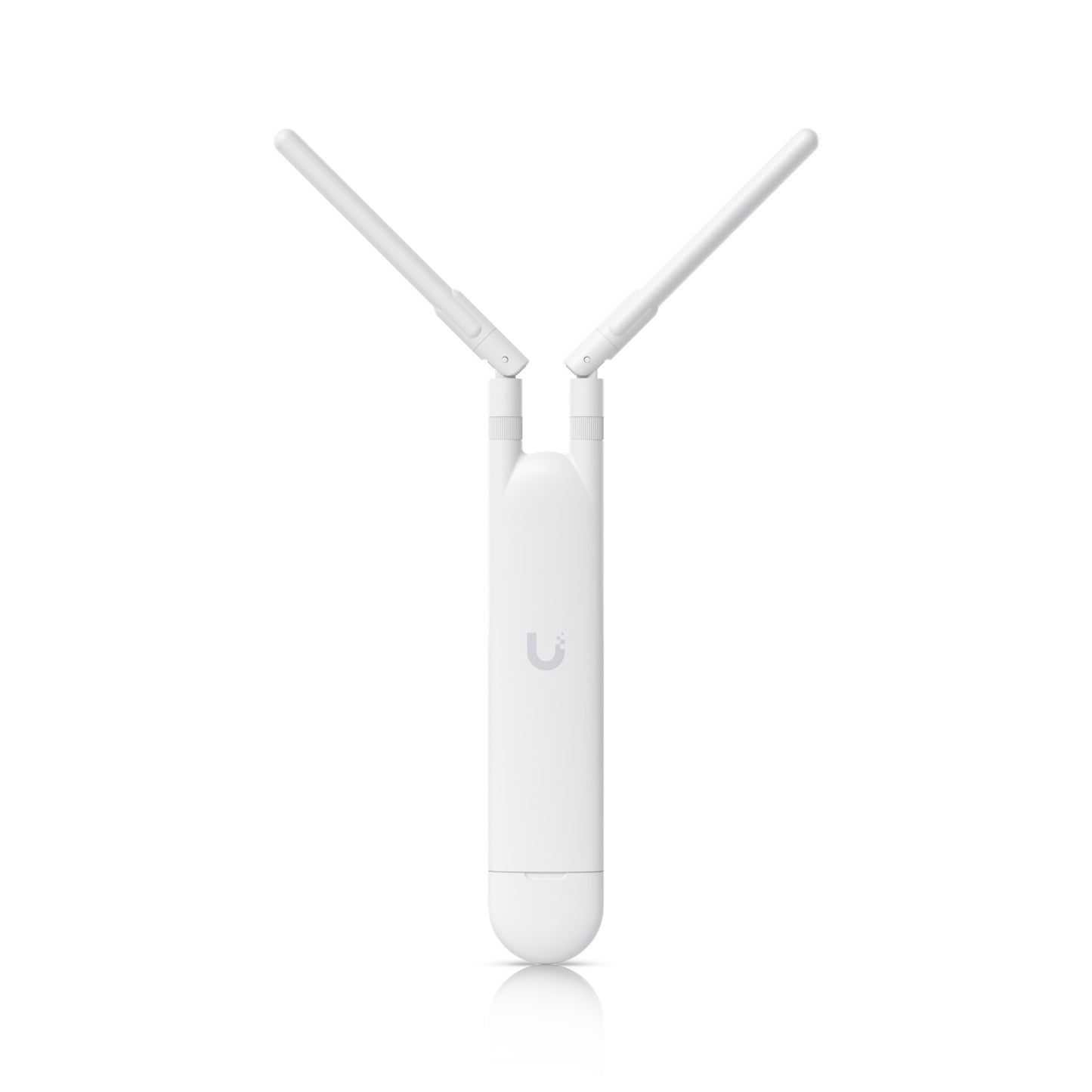

Ubiquiti UniFi UAP-AC-M Mesh Access Point

In today's connected world, a reliable and fast WiFi network is no longer a luxury but a necessity. Whether it's in the home office, corporate premises or outdoor environments, we need reliable and consistent connectivity. The Ubiquiti Unifi UAP-AC Mesh represents an advanced solution for creating a cohesive wireless network with seamless roaming. This centrally managed access point combines robust performance with flexible installation, making it an excellent choice for both indoor and outdoor use. In this comprehensive guide, we explore the features, benefits and uses of this versatile networking device.

Technical specifications and performance

The Ubiquiti Unifi UAP-AC Mesh offers impressive technical features that enable high-speed communication in wireless networks. This access point supports the AC1200 standard and delivers speeds of up to 867 Mbit/s on the 5 GHz band and 300 Mbit/s on the 2.4 GHz band. The dual-frequency capability ensures that the device can handle different types of connections simultaneously, optimizing network performance.

The device is equipped with two powerful and replaceable 4 dBi antennas with RP-SMA connectors. These antennas contribute to the device's excellent range and signal strength, which is especially valuable in outdoor environments or larger premises. For network connection, there is a gigabit port (FTP) that ensures fast data transfer between the access point and the wired network.

One of the most practical features of the UAP-AC Mesh is its support for true Power over Ethernet (PoE) according to the 802.3af standard. This means that the device can be powered via the network cable, eliminating the need for separate power cables and greatly simplifying installation. A PoE power injector is included, but the device can also be connected directly to a PoE-compatible network switch.

With physical dimensions of 354x46x34 mm, the access point is relatively compact considering its capacity and outdoor-rated construction. The durable design means the device can withstand temperatures from -30 to 70 °C, enabling installation in demanding environments.

Mesh technology and roaming functionality

At the heart of the Ubiquiti Unifi UAP-AC Mesh is its advanced mesh technology that enables the creation of a unified wireless network over larger areas. Unlike traditional access points that operate as isolated units, mesh access points work together to form a cohesive network with a common SSID (network name).

This technology enables seamless roaming, meaning connected devices can automatically switch between different access points without any interruption in their connection. When a user moves through an area covered by multiple UAP-AC Mesh devices, their device will connect to the access point offering the strongest signal without the user having to do anything manually.

Mesh technology also improves network reliability by creating redundant connection paths. If an access point fails or experiences interference, network traffic can be automatically rerouted through other access points in the network, minimizing the risk of outages.

For larger installations, multiple UAP-AC Mesh units can be configured in a mesh topology where some units act as "uplink" nodes with a wired connection to the network, while others act as "downlink" nodes that connect wirelessly to the uplink nodes. This creates a flexible and scalable network that can be adapted to specific needs and physical constraints.

Installation and assembly

The installation of the Ubiquiti Unifi UAP-AC Mesh has been designed to be as simple and flexible as possible. The device comes with mounting brackets that allow for wall or pole installation, making it suitable for a variety of environments and applications.

For outdoor installations, the unit's weatherproof design is particularly valuable. The robust construction protects against moisture, dust and extreme temperatures, ensuring reliable operation all year round. When installing outdoors, it is recommended to place the unit at a height and with a clear view to maximize the coverage area and minimize interference.

Power supply via PoE simplifies the installation process considerably, as only one network cable needs to be run to the device. The included PoE power injector is connected between the network switch and the access point, enabling both data transmission and power supply via the same cable. For installations with multiple devices, a PoE-compatible network switch can be used to further simplify cable management.

After the physical installation, the next step is to configure the device via the Unifi Controller software. This process involves identifying the new access point in the network, integrating it with existing Unifi devices, and configuring network settings such as SSID, security, and band control.

Centralized management with Unifi Controller

One of the biggest advantages of the Ubiquiti Unifi UAP-AC Mesh is its integration with the Unifi Controller platform. This free software acts as a central management system for all Unifi devices in the network, enabling unified configuration, monitoring, and troubleshooting.

The Unifi Controller can be installed on Windows or Mac OS computers, or as a dedicated hardware controller like the Unifi Cloud Key. There are also mobile apps available for Android and iOS that allow for network management from smartphones and tablets.

Through the controller software, administrators can configure all network settings, including wireless networks, guest networks, security policies, and bandwidth management. The system also offers detailed statistics and visualizations of network performance, helping to identify potential problems and optimize network performance.

A particularly useful feature is the ability to manage multiple locations from a single control panel. This is ideal for organizations with multiple offices or for IT consultants managing networks for multiple clients. Administrators can easily switch between different locations and manage each network individually without having to log into separate systems.

The software also offers advanced features such as scheduled reboots, automatic updates, and configuration backups, further simplifying the ongoing management of the network.

Use cases and implementation scenarios

The Ubiquiti Unifi UAP-AC Mesh is a versatile device that can be used in a variety of environments and scenarios. Here are some of the most common uses:

Outdoor network

Thanks to its weatherproof design, the UAP-AC Mesh is ideal for creating outdoor wireless networks. It can be used to cover gardens, parks, campsites or other outdoor areas where traditional indoor access points would not withstand the environmental conditions. The powerful antennas ensure good coverage even over larger open areas.

Business premises

In office environments, multiple UAP-AC Mesh units can be used to create a unified wireless network that covers the entire premises. The roaming feature ensures that employees can move freely throughout the building without experiencing interruptions in their connections, which is especially important for voice calls, video conferencing and other real-time applications.

Educational institutions

Schools and universities can leverage UAP-AC Mesh to provide reliable WiFi coverage in classrooms, hallways, libraries, and outdoor areas. Centralized management via the Unifi Controller simplifies network administration and enables the implementation of different policies for different user groups, such as students, teachers, and guests.

Hotels and restaurants

For hotels, restaurants and other hospitality businesses, UAP-AC Mesh offers a solution for providing WiFi services to guests both indoors and in outdoor areas such as terraces, pool areas and gardens. The guest network feature enables secure separation between guest traffic and the business's internal network.

Temporary events

At temporary events such as trade shows, concerts or sporting events, UAP-AC Mesh devices can be quickly deployed to create a temporary wireless network. Their easy installation and configuration make them ideal for scenarios where the network needs to be functional quickly and perhaps only for a limited time.

Security features and network protection

In today's cybersecurity landscape, robust network security is essential, and the Ubiquiti Unifi UAP-AC Mesh offers several features to protect the wireless network from unauthorized access and potential threats.

The device supports modern security standards including WPA2-PSK and WPA2-Enterprise, enabling strong encryption of wireless traffic. For organizations with more advanced security requirements, WPA2-Enterprise can be implemented with RADIUS authentication to ensure that only authorized users have access to the network.

Through the Unifi Controller, administrators can configure separate wireless networks with different levels of security. A common scenario is to have a secure internal network for employees and a separate guest network with limited access for visitors. The guest network feature can be configured with portals that require users to accept terms of service or enter an access code before accessing the internet.

Additional security features include the ability to isolate wireless clients from each other, preventing devices on the same network from communicating directly with each other. This is especially useful on public networks where you want to prevent potential side-channel attacks between connected devices.

The Unifi platform also offers intrusion detection and prevention capabilities that help identify and block potential security threats in real time. The system can automatically detect and block suspicious activity that may indicate unauthorized access attempts or other security breaches.

Summary and recommendations

The Ubiquiti Unifi UAP-AC Mesh represents a powerful and flexible solution for creating robust wireless networks with seamless roaming functionality. Its combination of high performance, weatherproof design, and centralized management makes it suitable for a variety of applications, from home offices to corporate premises and outdoor environments.

For organizations looking for a scalable and cost-effective network solution, the UAP-AC Mesh offers an attractive combination of features, performance, and ease of use. Seamless integration with the Unifi ecosystem allows for easy expansion of the network as needs grow, and centralized management via the Unifi Controller simplifies administration even for complex installations.

When implementing UAP-AC Mesh, it is recommended to carefully plan the placement of access points to ensure optimal coverage and minimize interference. For larger installations, a professional site survey can be valuable to identify optimal placements and potential problem areas.

In summary, the Ubiquiti Unifi UAP-AC Mesh offers a robust and flexible solution for modern wireless networking needs, with a balance of performance, functionality, and ease of use that makes it an excellent choice for many different scenarios.

Basic technical data
Dimensions	353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35")
Weight	152 g (5.36 oz) with antennas
Network Interfaces	(1) Ethernet 10/100/1000 port
Buttons	Reset
Power supply methods	24V Passive PoE (Pairs 4, 5+; 7, 8 Return); 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) (Supported voltage range: DC 44-57 VDC)
Power supply	24V, 0.5A Gigabit PoE
Saving energy	Yes
Maximum power consumption	8.5W
Max. power TX	20 dBm
Antennas	(2) Omni external dual-band antennas 2.4GHz - 3dBi 5GHz - 4dBi
Wi-Fi standards	802.11 a/b/g/n/ac
Network security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID	Up to four on the radio
Installation	Wall/post/fast assembly (Parts kit incl. unit)
Humidity during operation	5 to 95% non-condensing
Operating temperature	-30 to 70° C (-22 to 158° F)
Certificates	CE, FCC, IC
Advanced traffic management
VLANs	802.1Q
Advanced QoS	Bandwidth limitation for each user
Isolation of guests	Yes
WMM	Voice, Video, Best Effort, and Background
Number of simultaneous customers	250+
Supported data rates (Mbps)
802.11ac	6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11n	6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11Mbps
